Data Services

Plitho manages stateful data services — NATS, MongoDB, and RabbitMQ (via LavinMQ) — as native systemd processes on the host, with automatic resource limits, storage quotas, and optional scheduled backups.

Overview

Unlike web apps, data services are long-lived background processes that:

• Run as their own system user (nats, mongod, lavinmq)
• Listen on a dedicated port on 127.0.0.1 only
• Have a cgroup slice enforcing CPU and memory limits
• Have an XFS project quota enforcing disk usage
• Receive backup timers as systemd .timer units (optional)

All resource usage counts toward your account quota alongside apps and cache instances.

Supported Services

Type	Binary	Protocol	Default Port Range
nats	nats-server	NATS, JetStream	4222+
mongodb	mongod	MongoDB wire	27017+
rabbitmq	lavinmq	AMQP 0-9-1	5672+

RabbitMQ = LavinMQ

The rabbitmq type uses LavinMQ, a Go-native AMQP 0-9-1 broker that is fully compatible with RabbitMQ clients. It requires no Erlang runtime. The management UI is available at port+10000 (e.g. if AMQP is on 5672, management is on 15672).

Creating a Data Service

Dashboard

The creation flow has three steps:

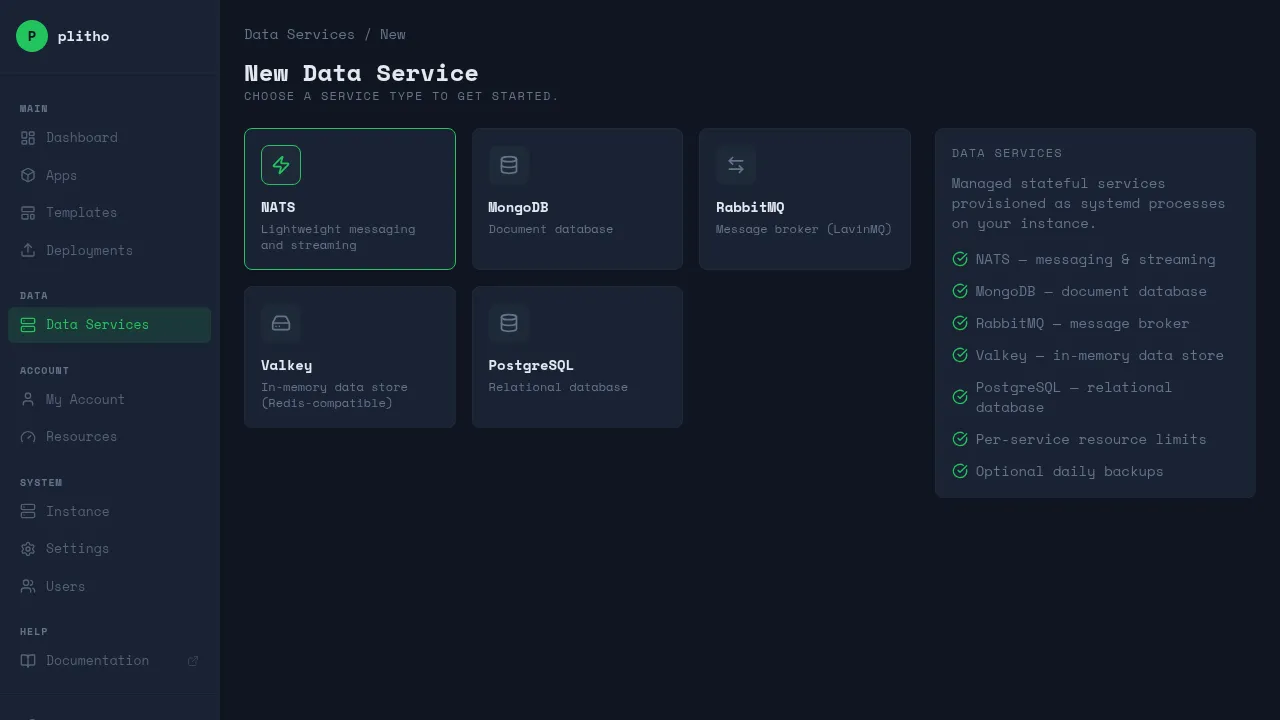

1. Type Selection — Go to Data Services → New Service, choose NATS, MongoDB, or RabbitMQ
2. Version + Resources — Select the installed version, set CPU/memory/storage, optionally enable backups
3. Config + Deploy — Fill in service-specific configuration (credentials, protocol settings), then click Deploy

The dashboard shows the connection port and any credentials. Save the password immediately — it is not stored after this response.

REST API

curl -b cookies.txt -X POST https://your-server:8080/api/data-services \
  -H 'Content-Type: application/json' \
  -d '{
    "type": "nats",
    "name": "my-nats",
    "max_cpu_millicores": 500,
    "max_memory_mb": 256,
    "storage_mb": 1024,
    "backup_enabled": true,
    "backup_schedule": "*-*-* 02:00:00",
    "credentials": {"password": "mysecret"}
  }'

Response:

{
  "type": "nats",
  "name": "my-nats",
  "port": 4222,
  "message": "Save the credentials — passwords are not stored after this response."
}

Connecting from Your App

All services bind to 127.0.0.1 only. Use localhost or 127.0.0.1 as the host.

NATS

nats://password@127.0.0.1:4222

GoNode.jsPython

nc, err := nats.Connect("nats://password@127.0.0.1:4222")

const nc = await connect({ servers: "nats://127.0.0.1:4222", token: "password" });

nc = await nats.connect("nats://password@127.0.0.1:4222")

MongoDB

mongodb://plitho_<name>:password@127.0.0.1:<port>/admin

GoNode.jsPython

client, err := mongo.Connect(ctx, options.Client().ApplyURI(os.Getenv("MONGODB_URL")))

const client = new MongoClient(process.env.MONGODB_URL);

client = MongoClient(os.environ["MONGODB_URL"])

RabbitMQ (LavinMQ)

amqp://username:password@127.0.0.1:5672/

Management UI: http://127.0.0.1:15672 (port+10000).

GoNode.jsPython

conn, err := amqp.Dial(os.Getenv("RABBITMQ_URL"))

const conn = await amqp.connect(process.env.RABBITMQ_URL);

conn = pika.BlockingConnection(pika.URLParameters(os.environ["RABBITMQ_URL"]))

Resource Management

Each service gets a dedicated systemd slice that enforces limits:

Field	What it limits
max_cpu_millicores	CPU quota via CPUQuota= (1000m = 1 core)
max_memory_mb	Hard memory cap via MemoryMax=; soft warning at 80% via MemoryHigh=
storage_mb	XFS project quota on the data directory

Minimum values: 100m CPU, 64 MB memory, 100 MB storage.

To update resources:

PUT /api/data-services/{type}/{name}/resources
{"max_cpu_millicores": 1000, "max_memory_mb": 512, "storage_mb": 4096}

This rewrites the slice file and restarts the service.

Credentials

Passwords are passed to the agent on creation and applied to the service config, but are not stored in Plitho's database. Store them in your app's environment variables.

To reset credentials:

POST /api/data-services/{type}/{name}/reset-credentials

A new random password is returned in the response. Plitho restarts the service to apply it.

Configuration

Each service type has a schema defining its configurable fields. The Config tab on the detail page renders these fields dynamically. Fields are annotated with their behavior:

Tag	Meaning
Hot reload	Applied immediately via runtime command (no restart needed)
Restart required	Saved to config, service must restart to take effect
Readonly	Cannot be changed after creation

Per-service configuration

NATS

Field	Type	Default	Notes
max_payload	number	1048576	Maximum message size in bytes. Restart required.
max_connections	number	65536	Maximum concurrent client connections. Restart required.
max_control_line	number	4096	Maximum length of control line protocol. Restart required.
write_deadline	number	10	Timeout for write operations (seconds). Restart required.
jetstream	boolean	false	Enable persistent messaging. Readonly after creation.

MongoDB

Field	Type	Default	Notes
auth_enabled	boolean	true	Require authentication. Restart required.
storage_engine	select	wiredTiger	Storage engine. Readonly after creation.
cache_size_gb	number	0.25	WiredTiger cache size in GB. Hot reload.
max_conns	number	1000	Maximum concurrent connections. Hot reload.

RabbitMQ (LavinMQ)

Field	Type	Default	Notes
heartbeat	number	60	Heartbeat timeout for client connections (seconds). Restart required.
frame_max	number	131072	Maximum frame size (bytes). Restart required.
channel_max	number	2048	Maximum number of channels per connection. Restart required.

Updating configuration

PUT /api/data-services/{type}/{name}/config
{
  "config": {"cache_size_gb": 0.5, "max_conns": 2000}
}

Response indicates which changes were applied immediately and which require a restart:

{
  "config": {"cache_size_gb": 0.5, "max_conns": 2000, ...},
  "hot_reload_applied": ["cache_size_gb", "max_conns"],
  "restart_required": [],
  "message": "Changes applied successfully."
}

Backups

Backups are implemented as systemd timer units that run a shell script on a schedule:

plitho-ds-{type}-{name}-backup.timer    ← schedule
plitho-ds-{type}-{name}-backup.service  ← one-shot runner

Backup data is stored at /var/lib/plitho/backups/{type}/{name}/YYYYMMDD-HHMMSS/. Backups older than 7 days are automatically pruned by the backup script.

Per-service strategy

Service	Method
NATS	Copy of the JetStream store directory
MongoDB	mongodump dump into a dated directory
RabbitMQ	Copy of the LavinMQ data directory

Configuring backups

PUT /api/data-services/{type}/{name}/backup
{"backup_enabled": true, "backup_schedule": "*-*-* 02:00:00"}

The backup_schedule field is a systemd calendar expression. Examples:

Schedule	Meaning
*-*-* 02:00:00	Daily at 02:00
Sun *-*-* 03:00:00	Weekly on Sunday at 03:00
*-*-1 04:00:00	Monthly on the 1st at 04:00

Check backup timer status:

systemctl status plitho-ds-mongodb-mydb-backup.timer
journalctl -u plitho-ds-mongodb-mydb-backup.service

Managing Services

Dashboard

The detail page for each service has seven tabs:

• Overview — connection details, credentials reset
• Logs — live streaming of systemd journal output
• Metrics — CPU, memory, and storage usage over time with charts
• Resources — update CPU / memory / storage
• Config — edit service-specific configuration (schema-driven, shows hot reload vs restart required)
• Backup — enable, disable, or reschedule backups
• Danger — delete the service and all its data

REST API

Method	Endpoint	Description
GET	/api/data-services	List all your services
POST	/api/data-services	Create a service
GET	/api/data-services/{type}/{name}	Get service details
DELETE	/api/data-services/{type}/{name}	Delete service + data
POST	/api/data-services/{type}/{name}/restart	Restart
PUT	/api/data-services/{type}/{name}/resources	Update resources
POST	/api/data-services/{type}/{name}/reset-credentials	New password
PUT	/api/data-services/{type}/{name}/config	Update configuration
PUT	/api/data-services/{type}/{name}/backup	Configure backup
GET	/api/data-services/{type}/{name}/logs/stream	Stream logs (SSE)
GET	/api/data-services/{type}/{name}/metrics	Get metrics data
GET	/api/data-services/{type}/{version}/schema	Get config schema

Deleting a Service

Danger

Deletion stops the systemd unit, removes the config file, and permanently deletes the data directory at /var/lib/plitho/ds/{type}/{name}/. Take a backup first.

DELETE /api/data-services/mongodb/mydb

Systemd Units

Each service produces the following units:

plitho-ds-{type}-{name}.service         # main service
plitho-ds-{type}-{name}.slice           # resource limits
plitho-ds-{type}-{name}-backup.service  # backup runner (if enabled)
plitho-ds-{type}-{name}-backup.timer    # backup schedule (if enabled)

# Status
systemctl status plitho-ds-nats-my-nats

# Logs
journalctl -u plitho-ds-nats-my-nats -f

# List all data service units
systemctl list-units 'plitho-ds-*'

Files on Disk

Path	Purpose
/etc/plitho/ds/{type}/{name}.conf	Service configuration
/var/lib/plitho/ds/{type}/{name}/	Data directory (XFS quota applied)
/var/lib/plitho/backups/{type}/{name}/	Backup archives
/usr/local/lib/plitho/ds/{type}-{name}-backup.sh	Backup script
/var/log/plitho/ds/{type}-{name}.log	Service log (where applicable)
